Debugging of Encoder/Mechanical Limited Wiring of "Wuhai Fast Gate" HOLIP Fast Gate Converter

HOLIP快速门变频器机械限位调试



Mechanical Limit Debugging of HOLIP Fast Gate Inverter

快速门的限位，也就是决定快速门的上升和下降位置的设置。



The limit of the fast door is the setting that determines the rising and falling position of the fast door.




它需要限位装置与控制系统的紧密配合，有机械限位和编码器限位，编码器又增量式和绝对值两种。



It needs the close cooperation of limit device and control system, including mechanical limit and coder limit, and encoder has incremental and absolute value.

另外，不同品牌的变频器，限位调试方法也是不同的。



In addition, different brands of converters, limit debugging methods are also different.




今天，我们以海利普HOLIP快速门变频器门为例，为您介绍它的机械限位的调试方法。



Today, we take the Heilip HOLIP Fast Gate Inverter Gate as an example to introduce the method of adjusting its mechanical limit for you.




在一樘快速门当中，有很多十分重要的配件，比如变频器，电机，限位器，红外防砸等。



In a fast door, there are many very important accessories, such as frequency converter, motor, limiter, infrared anti-smash and so on.




不同的生产厂家，在配件方法都有些差异，不过，即便是品牌、型号上有所不同，及功能还是一样的。



Different manufacturers have some differences in accessories methods, but even in brand, model, and function are the same.

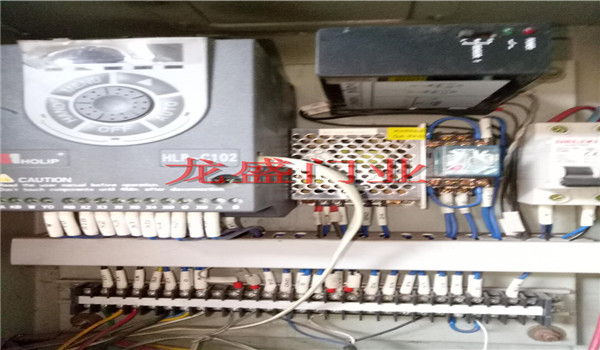

「乌海快速门」HOLIP海利普快速门变频器编码器/机械限位接线调试



Debugging of Encoder/Mechanical Limited Wiring of "Wuhai Fast Gate" HOLIP Fast Gate Converter




变频器出厂值为机械限位开关模式（C31.05=1），安装后即可使用。



Frequency Converter Factory value is mechanical limit switch mode (C31.05=1), can be used after installation.




根据需要调整以下参数：



Adjust the following parameters as needed:




参数号



Parameter number




C31.05 选择控制模式 C31.05=1



C31.05 Choose Control Mode C31.05=1




C31.00 下降延时时间设定 出厂值 5(5S)



C31.00 Decline Delay Time Set Output Value 5 (5S)




C31.01 上升低速运行时间 出厂值 1.0(1S)



C31.01 Increase Low Speed Operating Time Output Value 1.0 (1S)




C31.02 下降低速运行时间 出厂值 1.0(1S)



C31.02 Decreases the Output Value of 1.0 (1S) for Low Speed Operation Time




C31.12 上升高速频率设定 出厂值: 50HZ



C31.12 Rising High Speed Frequency Setting Output Value: 50HZ




C31.16 下降高速频率设定 出厂值: 35HZ

C31.16 Down High Speed Frequency Set Out Value: 35HZ




注:门关闭时光电开关无效的接线----X5、X0



Note: Invalid connection of photoelectric switch when door is closed - X5, X0

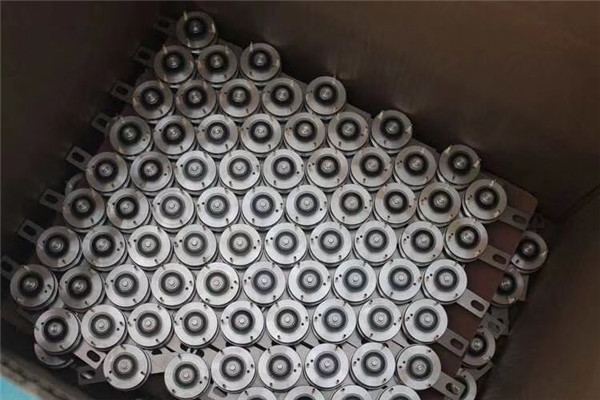

本公司批发快速门电机，电控箱，编码器，雷达，地感器，红外对射，机械限位等
