「快速门编码器」鄂尔多斯堆积门绝对值编码接线方法

作者:鄂尔多斯快速门厂家   发布时间: 2019/7/8 14:32:51



「快速门编码器」鄂尔多斯堆积门绝对值编码接线方法

Absolute Value Coding Connection Method for "Fast Gate Encoder" Stacking Gate



快速卷帘门的限位有两种方式,一种机械限位定位方式,一种编码器定位。


There are two ways to limit the fast curtain door, one is mechanical limit positioning, and the other is encoder positioning.


以前许多厂家为了节省成本,通常都会应用机械定位方式,这种机械限位造价成本低,但是带来的问题是调试快速卷帘门限位麻烦,通常需要10~20分钟才能定位准确。


In order to save costs, many manufacturers used to use mechanical positioning method. This kind of mechanical limit cost is low, but the problem is that it is difficult to debug the fast rolling shutter threshold. It usually takes 10 to 20 minutes to locate accurately.

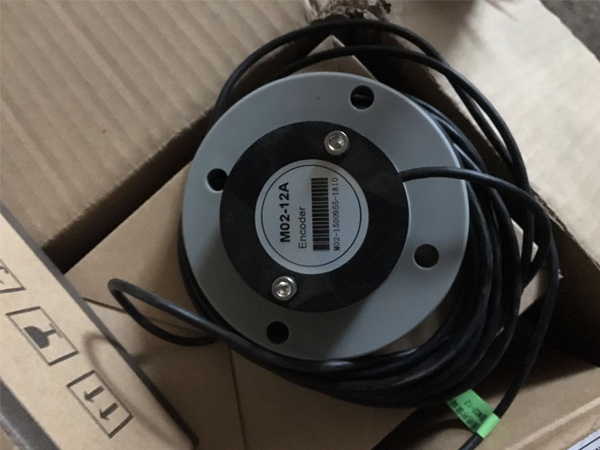

快速门编码器批发


而编码器限位则相对要简略许多,而且具备定完精准,不移位的优势,由于在断电的情况下,它是不记忆行程的。


The encoder limit is relatively much simpler, and has the advantage of precision and non-displacement, because in the case of power failure, it does not remember the journey.


机械定位方法与常见的钢制卷闸门相差无几,由于不常用,这里不做过多的介绍了。


The mechanical positioning method is almost the same as the common steel coil gate. Notes for debugging the interlocking stacking gate of Zhangjiakou Express Gate are not introduced too much here because it is not commonly used.


「快速门编码器」鄂尔多斯堆积门绝对值编码接线方法


Absolute Value Coding Connection Method for "Fast Gate Encoder" Stacking Gate



快速门编码器接线




就分辨率为1024的编码器而言,这里就以龙盛门业的产品为例,它能够将3米高的快速卷帘门分解成9000个点,因而它的准确度能够达到0.3毫米。能够由一个按键来恣意操控高度。


For the encoder with 1024 resolution, take Longshengmen's products as an example. It can decompose the 3-meter-high fast shutter door into 9,000 points, so its accuracy can reach 0.3 mm. It can control height arbitrarily by one button.


如只过人的快速门高度为2米就能够了,但若是有巨大物体通过,如叉车,那么咱们就需要在从头设置如下高度。


If the height of the fast door is only 2 meters, but if a huge object passes through, such as a forklift, then we need to set the following height from scratch.


编码器接线方式


Encoder wiring mode


1、电机安装在右侧:红色线接+24,绿色线接-24,黄色线接XO,白色线接X1,黑色线接X2


1. The motor is installed on the right side: red connection + 24, green connection - 24, yellow connection XO, white connection X1, black connection X2.


2、电机安装在左侧:红色线接+24,绿色线接-24,白色线接XO,黄色线接X1,黑色线接X2


2. The motor is installed on the left side: red wire connection + 24, interlocking stacking door of Zhangjiakou Express Gate debugging precautions, green wire connection - 24, white wire connection XO, yellow wire connection X1, black wire connection X2


3、备注:红色线、绿色线、黑色线接线方式始终不变。黄色线和白色线更急电机左右装机需兑换。


3. Remarks: The wiring mode of red, green and black lines remains unchanged. Yellow and white lines need to be converted when the motor is installed right or left.
